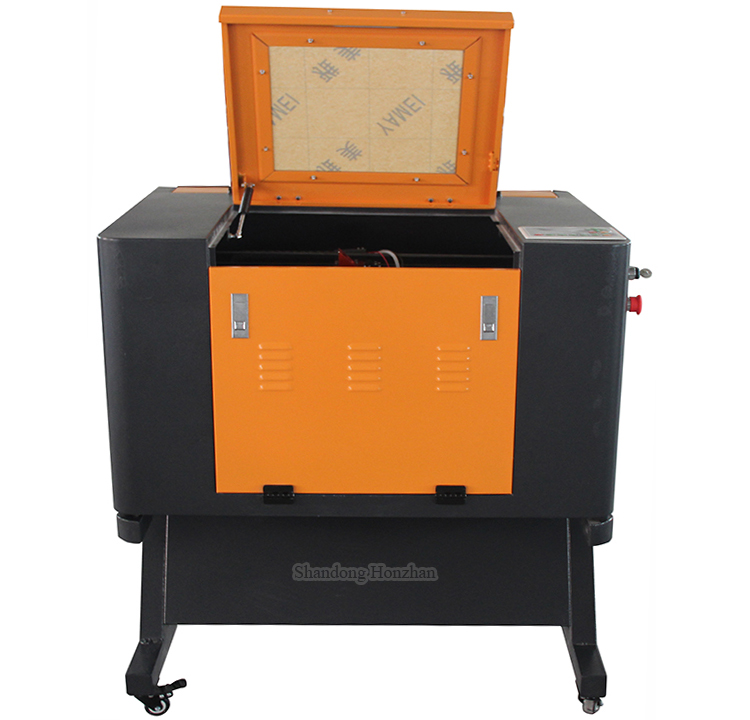

HZ-5030 Small Craft Laser Engraving Machine, Acrylic Laser Engraver 500*300mm

HONZHAN laser engraving machine: using regular professional laser system, stable and reliable, Ruida control board, small handicraft engraving machine, USB interface, can work independently.

This machine is suitable for all kinds of non-metallic materials, such as jade, crystal, wood, plastic, acrylic and so on.

1. Applicable industry:

1). Mainly used in advertising signs, craft gifts, crystal decoration, paper-cutting process, bamboo and wood carving process, etc.

2). It is suitable for processing small-scale crafts. Can engrave various graphic characters on double-color boards, wood boards, bamboo sheets, plexiglass, cloth, leather and other materials.

3). Can engrave names, models, logos on the electronic components, which are permanent.

2. Technical Parameters:

Model	HZ-5030 laser engraving machine
Laser Tube Power	40W, optional 50W, 60W
Work Area (mm)	500*300mm
Max materials thickness	0-80mm with motorized up&down worktable
Platform	Honeycomb platform, optional blade platform, motorized up&down worktable
Cut thickness	0-10mm, (The thickness of cut is for reference, depending on the materials and clients’ cutting requirements )
Laser type	CO2 sealed glass laser tube
Drive system	Leadshine drive
Control board	Ruida control board and operate panel
Max engraving speed	1300mm/s
Max cutting speed	600mm/s
positioning accuracy	<0.01mm
Minimum forming character	1*1mm
Focusing lens	1 focusing lens and 3 mirrors
Data Transfer Interface	USB/network cable/offline work independently
Power supply	220V 50HZ or 110V 60HZ
System environment	WINDOWS2000/WINDOWSXP/VISIT/WIN7
cooling method	Water cooling and protection system
Software supported	Direct output software: CorelDraw, AutoCAD, LASERCUT Design software: PhotoShop, ArtCut, Adobe Reader
Picture Formats Supported	PLT/DXF/BMP/AI (Direct output) JPG,GIF,PNG,TIF(Conversion output)
Water cut protection	Yes
Power failure protection	yes
Package	Plywood wooden packaging

3. Detail Images:

4. Samples Display:
